Your are here: Home >> Products >>Multi-function Mushroom Type Extraction Tank
Multi-function mushroom type extraction tank is commonly used in medicine, biology, food, chemical leaching extraction equipment. Can provide the material of water extraction, alcohol extraction solvents in volatile oil extraction and recycling dross, applicable to the diacolation, warm immersion, reflux, circulation impregnation, pressure or reduced pressure leaching and so on the many kinds of craft.
Directory
- Structure of Multi-function Mushroom Type Extraction Tank
- Usages of Multi-function Mushroom Type Extraction Tank
- Characteristics of Multi-function Mushroom Type Extraction Tank
- Technical Parameters of Multi-function Mushroom Type Extraction Tank
- Multi-function Mushroom Type Extraction Tank Finished Picture

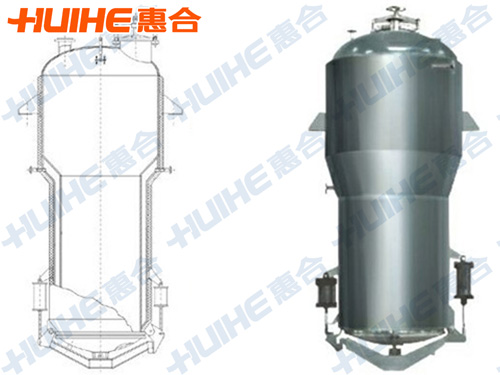

Structure of Multi-function Mushroom Type Extraction Tank
The multi-function extraction tank includes: extraction tank, defoaming machine, congealing machine, cooling machine, oil-water separating machine, medicine pumps, the console and other accessories.
Usages of Multi-function Mushroom Type Extraction Tank
This extraction equipment is to service at such industries as China traditional drug, foodstuff and chemistry for the technologies such as normal pressure, mini pressure, water decocting, and warm immersion, thermal circumfluence, compelled recycle and leakage, extraction of aroma oil and reclamation of organic.
Characteristics of Multi-function Mushroom Type Extraction Tank
1. Shape above big under small, mushroom type. Big: boiling on buffer space is large, is not easy to run; under the small, fast heat transfer solution, heating time is short, high extraction efficiency.
2. Slag on the door has a bottom heating, make medicinal herbs extract more completely.
3. It has the advantages of high efficiency, easy to operate.
Technical Parameters of Multi-function Mushroom Type Extraction Tank
|
Style No |
TQ-1000 |
TQ-2000 |
TQ-3000 |
TQ-6000 |
TQ-8000 |
TQ-10000 |
|
Volume |
1200 |
2300 |
3200 |
6300 |
8500 |
11000 |
|
Tank design pressure(MPA) |
0.09 | |||||
|
Jacketed layer design pressure(MPA) |
0.3 | |||||
|
Feed orifices diameters(mm) |
400 |
400 |
400 |
500 |
500 |
500 |
|
Heating area (㎡) |
3 |
4.7 |
6.8 |
10 |
12 |
15 |
|
Condensation area (㎡) |
4 |
5.4 |
8 |
10 |
15 |
18 |
|
Cooling area(㎡) |
1 |
1 |
1.5 |
2.2 |
2.2 |
2.2 |
|
Filter area(㎡) |
0.25 |
0.25 |
0.25 |
0.3 |
0.3 |
0.36 |
|
Slag discharge door diameters(㎡) |
800 |
800 |
800 |
1000 |
1000 |
1000
|
|
Gas consumption（kg/h） |
285 |
346 |
570 |
718 |
903 |
1140 |
|
Equipment weight（kg） |
1800 |
2050 |
2400 |
3025 |
4030 |
6500 |
|
Heating steam orifices |
DN-50 |
DN-50 |
DN-60 |
DN-60 |
DN-80 |
DN-80 |
|
Secondary orifices |
DN-80 |
DN-80 |
DN-100 |
DN-100 |
DN-100 |
DN-100 |
|
Cooling water orifices |
DN-50 |
DN-50 |
DN-60 |
DN-70 |
DN-70 | |
|
Motor power(KW) |
2.2 |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Stirring speed(rpm) |
21 |
21 |
32 |
32 |
32 |
32 |
Notes:
Technical parameters of extracting tank can be adjusted according to the actual working condition of physical properties.
Multi-function Mushroom Type Extraction Tank Finished Picture
