The vacuum degassing tank also known as vacuum takes off angry machine or vacuum degasser，is one kind of the stainless steel tank and it's used for homogenized fruit juice to degas in vacuum condition, in order to prevent the oxidation, and extend the shelf life of fruit juice.
Directory
- structure of Vacuum Degassing Tank
- Characteristics of Vacuum Degassing Tank
- Technical Parameters of Vacuum Degassing Tank
- Vacuum Degassing Tank Finished Picture

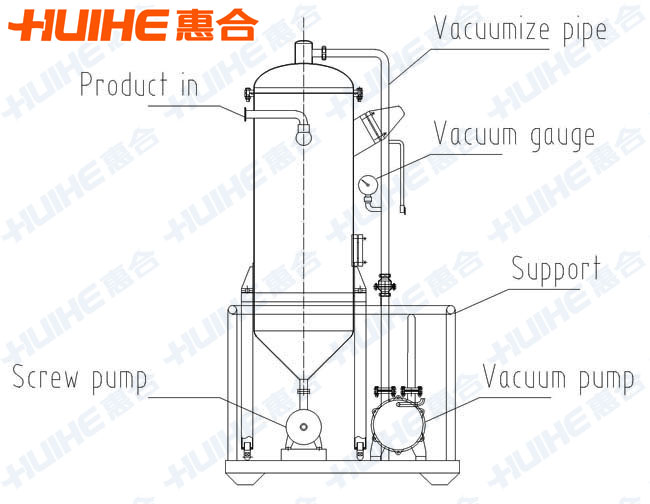

structure of Vacuum Degassing Tank
Characteristics of Vacuum Degassing Tank
1. Can greatly shorten the degassing time of heating or cooling system exhausting water, was very beneficial for operation system to the first test .
2. Remove gas in system, prevent air resistance to ensure that the system stable and reliable operation.
3. Eliminate water pump cavitations’ erosion, reduce the system noise .
4. The removal of oxygen in water reduces the aerobic corrosion of the equipment, prolong the using time.
5. Due to removal of gas in the water, the surface of heat exchanger will not covering gas bubble, improve the heating efficiency.
6. The working time and cycle can be adjust according to need.
7. Single applicable system volume can be reach up to 150 m3, and can be parallel used.
8. Equipment installation convenient, automatic operation, safe and reliable, easy to maintenance.
Technical Parameters of Vacuum Degassing Tank
|
Model |
HEZT-1 |
HEZT-2 |
HEZT-3 |
HEZT-10 |
HEZT-15 |
|
Processing power
|
1000L/H |
2000L/H |
3000L/H |
10000L/H |
15000L/H |
|
Vacuum degree |
6.4~8.7×10pa | ||||
|
Motor power |
3.95kw |
4.5kw |
4.5kw |
8kw |
9.5kw |
|
Body size |
1035×750×2840 |
1135×780×3040 |
1185×800×3140 |
1600×1700×3250 |
1750×1500×3500 |
|
Weight |
270kg |
350kg |
450kg |
600kg |
800kg |
Notes:
1. The technical parameters of vacuum degassing tank for reference (in kind prevail), any special requirement, please put forward.
2. Process parameters that need provided: capacity, special requirements, etc.

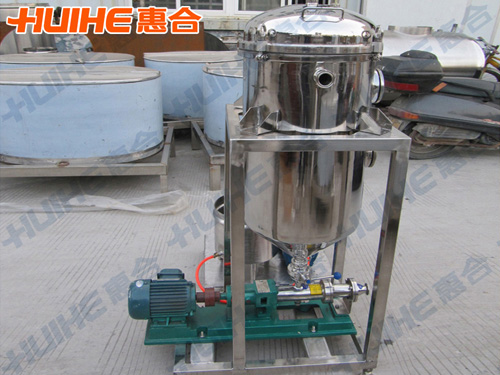

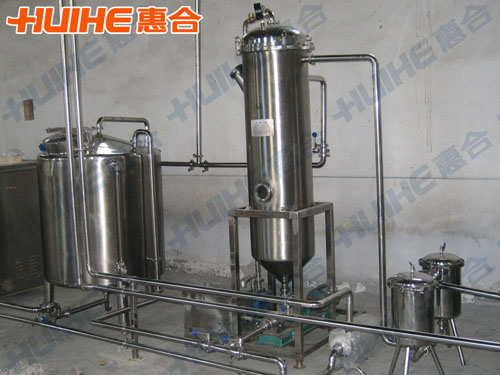

Vacuum Degassing Tank Finished Picture
