Allocation Tank Manufacturers

Allocation Tank also known as deployment tank, is one kind of the stainless steel vessel and it's has the characteristics of energy saving, corrosion resistance, strong production capacity, simple structure and is easy to clean. It is mainly used for dairy, sugar and other elements mixing with all kinds of drugs to stir homogeneously. And now it has been the indispensable equipment in the dairy products, beverage, and pharmaceutical factories.

Classification of Allocation Tank

1. According to Structure: opening on the head & ramp bottom，opening on the head & conical sealed head on the bottom Allocation Tank , up & down conical sealed head Allocation Tank, up & down elliptical sealed head Allocation Tank;

2. According to Heating Type: there are Steam Heating Allocation Tank and Electric Heating Allocation Tank;

3. According to Volume: there are 100L-1000L Allocation Tank, also can design and facture in accordance with customers’ requirements.

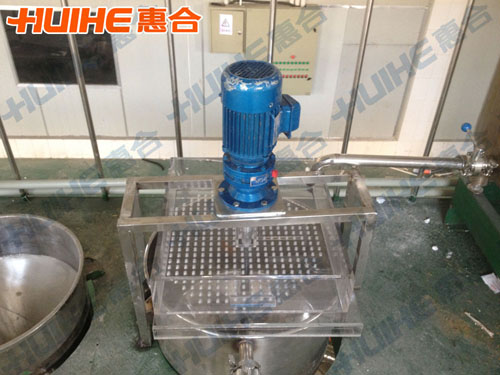

Live Demonstration of Allocation Tank

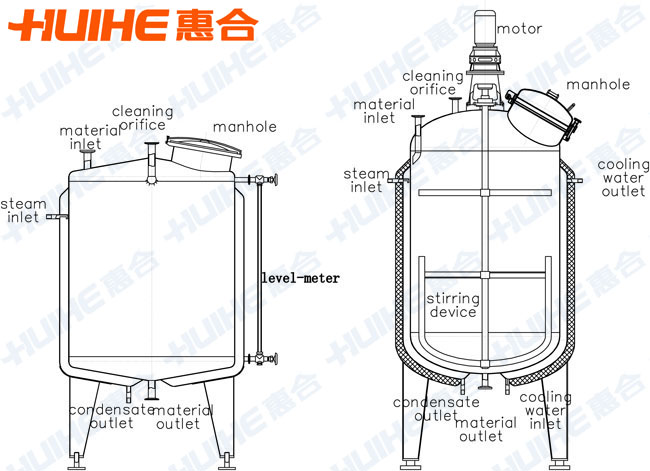

Structure of Allocation Tank

Characteristics of Allocation Tank

1. The insulation material is polyurethane foam or pearl cotton which is high temperature-resistant and anti-aging.

2. The interface adopts international standard ISO fast loading camp, inner pot uses imported stainless steel SUS304 or SUS306L, and is mirror-polished to Ra≤0.4m, outer surface adopts matte, mirror, blasting, or cold-rolled matte.

3. The mixing tank's mixing seal adopt imported sanitary mechanical agitation seal or magnetic seal agitating device, stirring speed are optional.

4. The pipe mouth is equipped with liquid level gauge (static pressure type, capacitive, non-contact type, ultrasonic type, glass tube type), air-breathing mouth, thermometer( digital display type or dial type),CIP cleaning mouth, mirror, explosion-proof sight (integration of mirror and light), SIP sterilization mouth, liquid inlet and outlet and sanitary manhole etc.

Technical Parameters of Allocation Tank

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.75	0.75	0.75	0.75	1.5	2.2	3
Stirring speed (rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Sanitary manhole、cleaning ball、safety valve、pressure gauge

Notes：

1. The technical parameters of deployment tank is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa, also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the deployment tank: the nature of material, working pressure, temperature, specific requirements, etc.

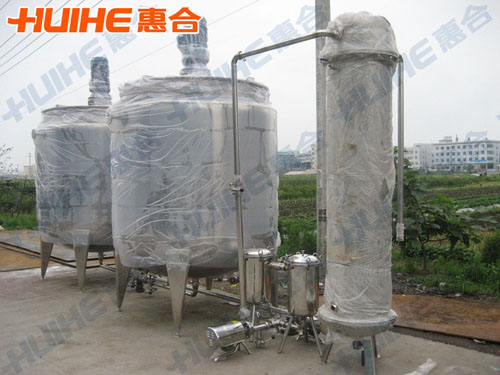

Allocation Tank Finished Picture
